KlinMak Floor Scrubber
Joker 5070
Floor scrubber-dryers unique in the world with 4 brushes
The ideal solution for those looking for high performance, cutting-edge technology and a compact and versatile design for the professional cleaning industry.
- 70cm cleaning track
- ~50 liters solution capacity
- Suited for 1,000-1,500 m² environments
- 36-month warranty
Ideal for...
Power and efficiency in a compact design
Simple, lightweight and easy to handle, thanks to the lithium battery, which guarantees maximum autonomy and high performance.
HEPA H13 filter as standard: retains fine particles improving air quality and ensuring an environment of healthier work.

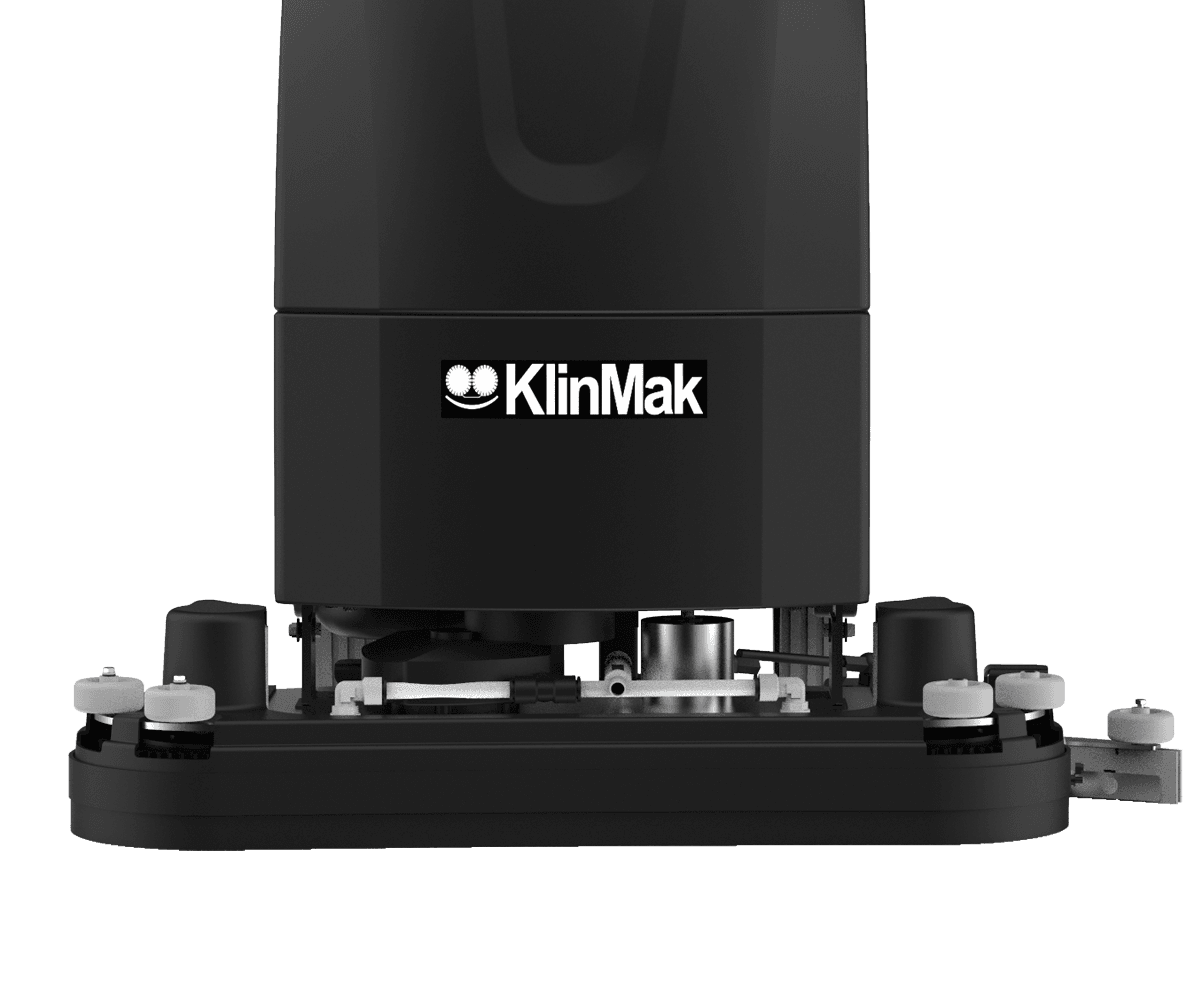

Independent turbine, designed for efficient extraction and quick drying of surfaces.
Flexible power supply and maximum versatility
Available in two variants:
Cable version, with dedicated current transformer.
Lithium battery powered version, with two configurations available for different operational needs.
Ergonomic design and ease of use
Handy, compact and lightweight, perfect for cleaning small spaces, such as medium-sized supermarkets, industries, warehouses, commercial buildings and public buildings. JOKER 5070 is available with or without traction (forward gear -FT-).
Flush-wall cleaning in both running directions, with an ergonomic and comfortable handle that reduces operator fatigue.
Easy to transport in vans, perfect for cleaning and facility management companies.
Key Features
Designed for professional cleaning performance with innovative technology

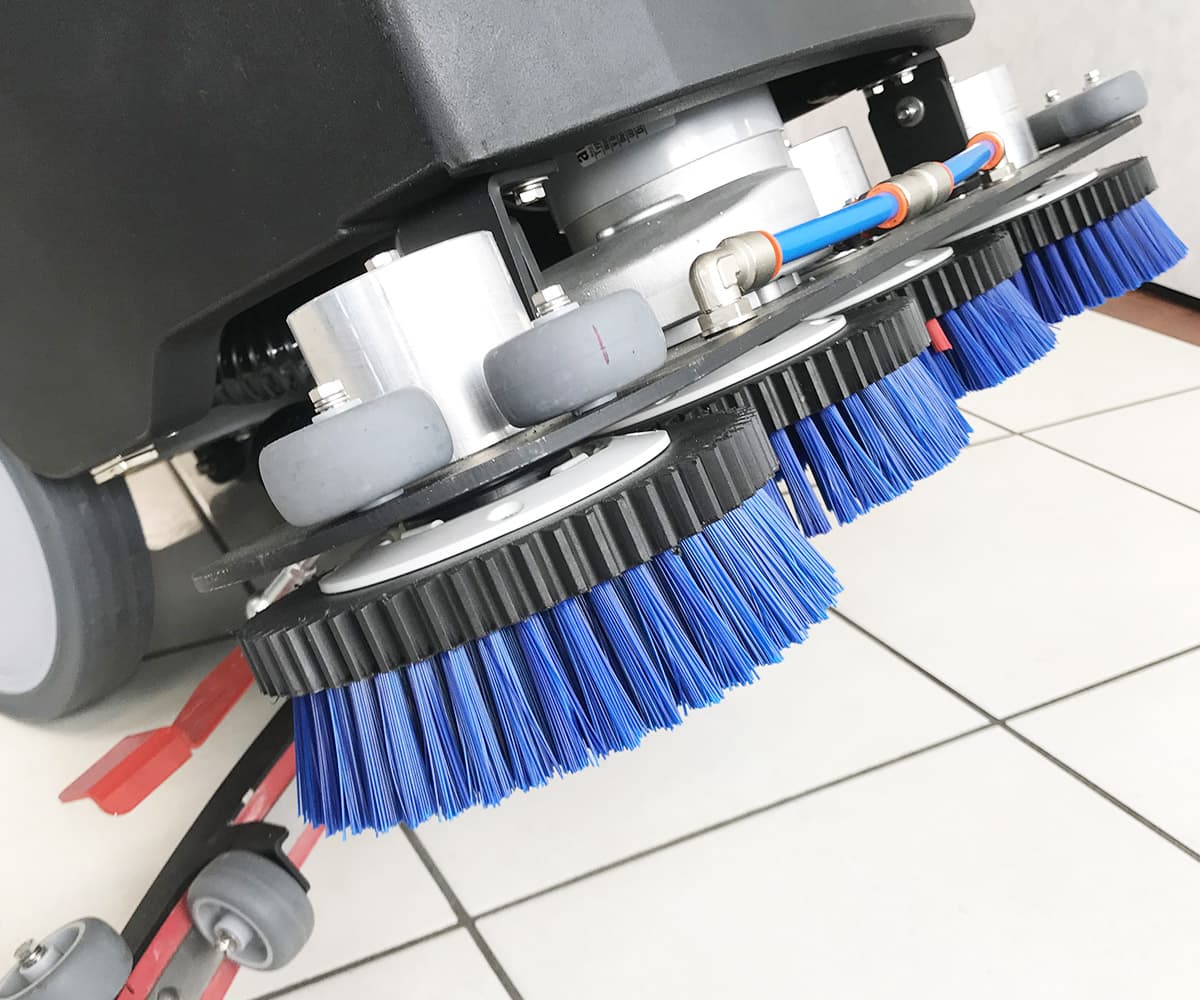

Patented 4-Brush System
KlinMak's patented single-motor system driving four brushes for superior cleaning performance.
Lithium Battery Power
Minimum 1-hour autonomy, up to 3 hours in Plus version. Short charging times eliminate lengthy Gel/AGM battery cycles.
HEPA H13 Filter Standard
Independent turbine for efficient extraction with standard HEPA H13 filtration.
Compact & Ergonomic Design
Handy, compact, and lightweight construction with ergonomic handle reducing operator fatigue.
Flush-Wall Cleaning
Flush-wall cleaning capability in both directions for thorough coverage.
Tool-Free Maintenance
Tool-free brush replacement system for simplified, low-maintenance operation.
Technical Specifications
| Description | Joker 5070-e | Joker 5070 | Joker 5070 Plus | Joker 5070 FT | Joker 5070 FT Plus |
|---|---|---|---|---|---|
| Code | F.532.0 | F.530.0 | F.531.0 | F.540.0 | F.541.0 |
| Total installed power | 850 W | 850 W | 850 W | 950 W | 950 W |
| Tank capacity (sol./rec.) | 47 / 50 L | 47 / 50 L | 47 / 50 L | 47 / 50 L | 47 / 50 L |
| Sound pressure level | 63.9 dB(A) | 63.9 dB(A) | 63.9 dB(A) | 63.9 dB(A) | 63.9 dB(A) |
| Work width / squeegee | 712 mm / 4×7" – 800 mm | 712 mm / 4×7" – 800 mm | 712 mm / 4×7" – 800 mm | 712 mm / 4×7" – 800 mm | 712 mm / 4×7" – 800 mm |
| Brush speed | 220/290 rpm | 220/290 rpm | 220/290 rpm | 220/290 rpm | 220/290 rpm |
| Washing motor power | 500 W | 500 W | 500 W | 500 W | 500 W |
| Weight on head | 30 kg max | 30 kg max | 30 kg max | 30 kg max | 30 kg max |
| Solution flow rate | 0-2 L/min | 0-2 L/min | 0-2 L/min | 0-2 L/min | 0-2 L/min |
| Hourly yield at 2km/h | 1,400 mq/h | 1,400 mq/h | 1,400 mq/h | 1,400 mq/h | 1,400 mq/h |
| Suction turbine motor power | 350 W | 350 W | 350 W | 350 W | 350 W |
| Traction motor power | — | — | — | 100 W | 100 W |
| Maximum slope | — | — | — | 2% | 2% |
| Power supply – Voltage | AC – 230V 50Hz | DC – 54.6V | DC – 54.6V | DC – 54.6V | DC – 54.6V |
| Lithium battery | — | 13 Ah | 19.2 Ah | 13 Ah | 19.2 Ah |
| Battery charger | — | 5 A | 5 A | 5 A | 5 A |
| Autonomy / charging times | — | 1.5h / 2.5h | 3h / 4h | 1.5h / 2.5h | 3h / 4h |
| Dimensions (closed) | 900×750×1,100 mm | 900×750×1,100 mm | 900×750×1,100 mm | 900×750×1,100 mm | 900×750×1,100 mm |
| Packaging dimensions | 975×804×1,065 mm | 975×804×1,065 mm | 975×804×1,065 mm | 975×804×1,065 mm | 975×804×1,065 mm |
| Net weight / with packaging | 70 / 85 kg | 70 / 85 kg | 73 / 88 kg | 75 / 90 kg | 78 / 93 kg |
Sustainability
- 80% recycled plastics in construction
- ESG-compliant design
- Three suction power levels for optimal drying
- Adjustable solution flow rate for targeted consumption
Target Industries
